3D SHAPE MAKING

Foam, timber, plastics, composites, solid surface materials, alumabond - The list goes on! Our 3D machining capabilities have been applied to:

Fibreglass pattern making - sculptures and art production signage and advertising fabrication - bucks and jigs architectural fabrication - concrete void forms

and much more.

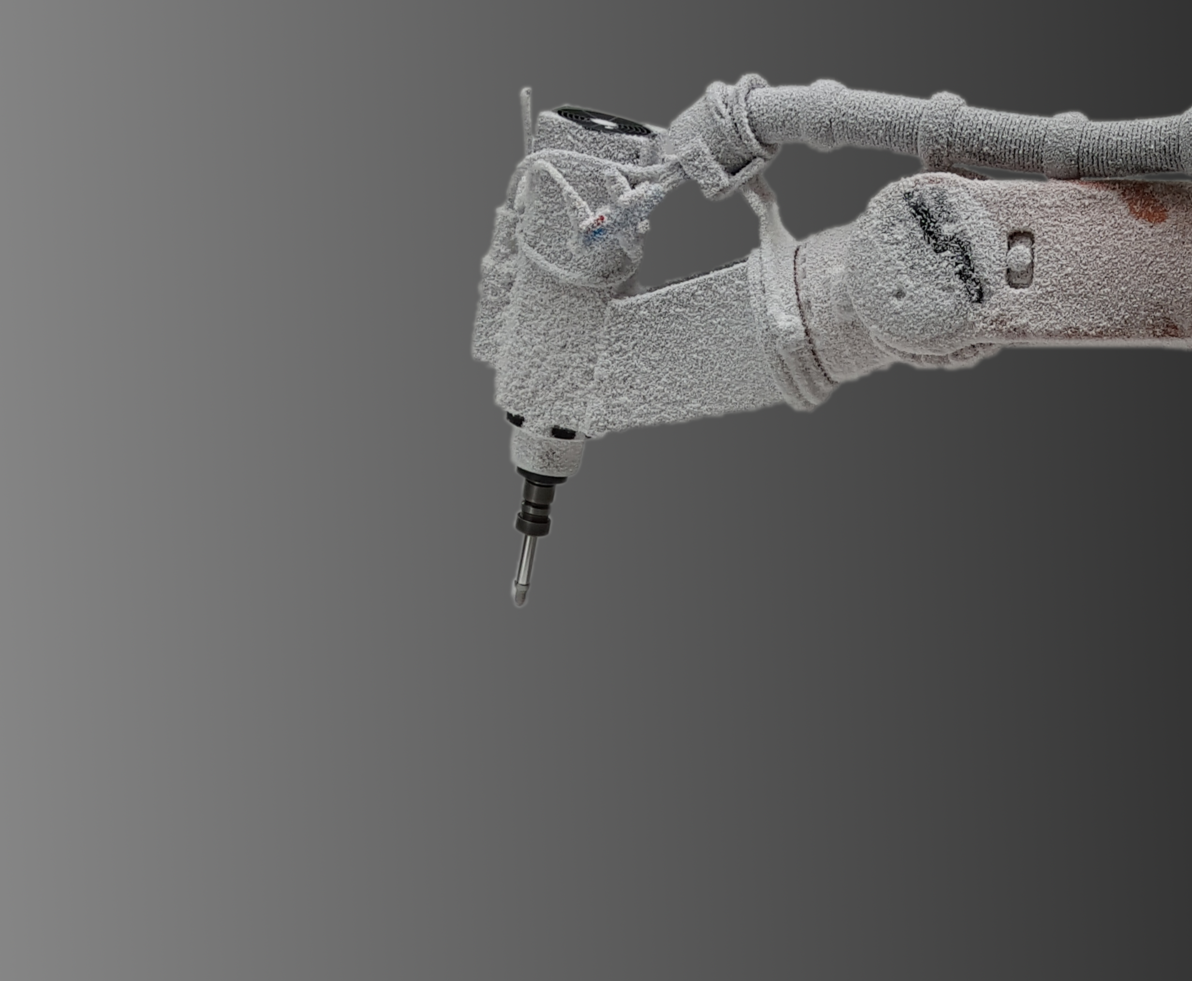

6-Axis Robot

Our 6 axis robot milling setup features a 7th axis rotating job table.

8kw spindle with automatic tool measurement

2.7m of reach

0.02mm positional repeatability

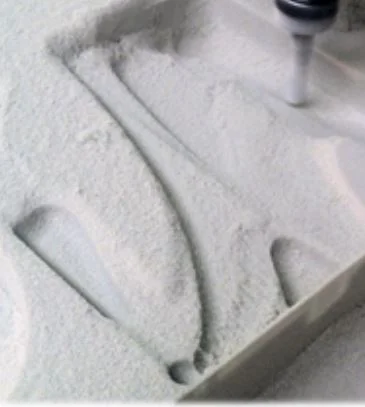

3-Axis Routers

We utilise 2 full size CNC routers.

8kw spindles with auto tool change and tool measurement

Vacuum hold down tables

- 1500 x 2700 x 270 bed capacity on router 1

- 1800 x 3600 x 100 bed capacity on router 2

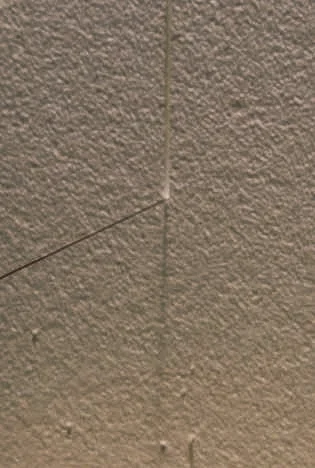

CNC Hot WIRE

Our hot wire cutting machine was fully developed and built in house to meet our specific wire cutting needs.

- 1250mm wide (wire spans this dimension)

- 2500mm long

- 1800mm tall
